Econamic & Ecomatic

Customised public utility hydraulic design

Available as constant hydraulic system or as load-sensing hydraulic system.

Econamic hydraulic systems deliver constant volumes of oil to a maximum of two different hydraulic circuits. For instance in winter operation a snowplough and a spreader unit can be supplied. A tandem pump directly flanged on to the engine power take-off drive of the vehicle then supplies the front plough with a maximum of 20 litres of hydraulic oil, and the second circuit for the spreading unit with a maximum of 40 litres. Each of the two hydraulic circuits is thus fully dedicated to its respective consumer. Of course the Econamic municipal hydraulic system is also available as a single-circuit hydraulic system. The valve block and the black box for the controls are installed in an enclosed equipment cabinet. On request, a combination equipment cabinet with an integral hydraulic tank is available.

Ecomatic hydraulic systems on the other hand use load-sensing technology. They incorporate a hydraulic control system which matches the delivery volumes precisely to the instantaneous demands of one or more consumers. This allows it to supply snowploughs, spreader units, side ploughs, front-mounted sweepers, top-mounted tippers, cranes etc. The hydraulic supply to the entire LS system is provided by an axial piston-type variable displacement pump which also is directly flanged on to the engine power take-off drive of the vehicle. If desired, a clutch can be installed between the power take-off drive and the variable displacement pump, so that the drive can be disconnected from the pump. The axial piston-type variable displacement pump permits any delivery volume in the lower engine speed range. The advantages of the proportional valve technology used lie above in the reduction of the noise level thanks to low engine speeds, the reduction in operating costs and also the flexible sandwich design.

Get to know the Econamic & Ecomatic hydraulic system

Technology
Modern hydraulic technology
Modern hydraulic technology

Bucher municipal hydraulic systems are available as constant hydraulic systems designated “Econamic“ or as load-sensing hydraulic systems designated ”Ecomatic“. The Econamic system has a high level of commercial efficiency and low maintenance costs and the Ecomatic system has a proportional valve technology.



Reliability
Reliable and performant hydraulic systems
Reliable and performant hydraulic systems

The hydraulic systems of the Econamic and Ecomatic range are renowned for their excellent reliability, first-class service and attractive price-performance ratio. The excellent equipment finish and the use of tried-and-tested components are further proof of the great technical expertise built into our machines.

Performance
High quality and long lifetime
High quality and long lifetime

The hydraulic systems Econamic and Ecomatic rather extensive standing out due to high quality and durability.

Key specifications

  • Ecomatic with proportional valve technology
  • Comprehensive product portfolio
  • Econamic with high level of commercial
    efficiency and low maintenance costs
  • Ecomatic with adjustment of speed and sensitivity
    directly from the control panel
  • Demand-driven planning and professional
    execution of the necessary processes
  • Comprehensive dealer network and trained
    customer service stations

Key features

Wachendorf hydraulic terminal
Jetter hydraulic terminal
Joysticks for driver and co-driver
Access ladder
Snow clearing light
Stainless steel piping
Underrun protector
Side attachment plates
Front mounting plates
Clutch with its own oil tank
Equipment cabinet

Wachendorf hydraulic terminal (optional)

Wachendorf type OPUS A3S for visualisation and control of the Ecomatic hydraulic system in conjunction with one or more joysticks.

Jetter hydraulic terminal (optional)

Jetter type JVM 104 for visualisation and control of the Econamic. Ecomatic hydraulic systems in conjunction with one or more joysticks.

Joysticks for driver and co-driver (optional)

The various operating units are controlled by a type “b-Drive-Cab-Control”. On request this can be configured as an armrest unit.

Access ladder (optional)

Made of stainless steel throughout, and individually matched to the vehicle. With retaining clamp, and adjustable depth.

Snow clearing light (optional)

On request, different lighting systems such as additional front headlights or rotary beacon lights and flashing light systems can be supplied.

Stainless steel piping

All connections are made of stainless steel piping instead of hydraulic hoses. On request with additional wax-based anti-corrosion protection.

Underrun protector (optional)

In a particularly sturdy design for installing a bolt-on ball-head coupling for attaching car trailers and for mounting side snow ploughs.

Side attachment plates (optional)

On the right side of the vehicle (plough plate size F1) to DIN EN 15432, height can be adjusted, additional adapter plates are available for ploughs from different manufacturers.

Front mounting plates (optional)

To DIN EN 15432, optimally designed for combinations of vehicle-mounted equipment, the height can be adjusted.

Clutch with its own oil tank (optional)

If desired, a clutch can be installed between the power take-off drive and the hydraulic pump. This allows the drive to be disconnected and prevents damage.

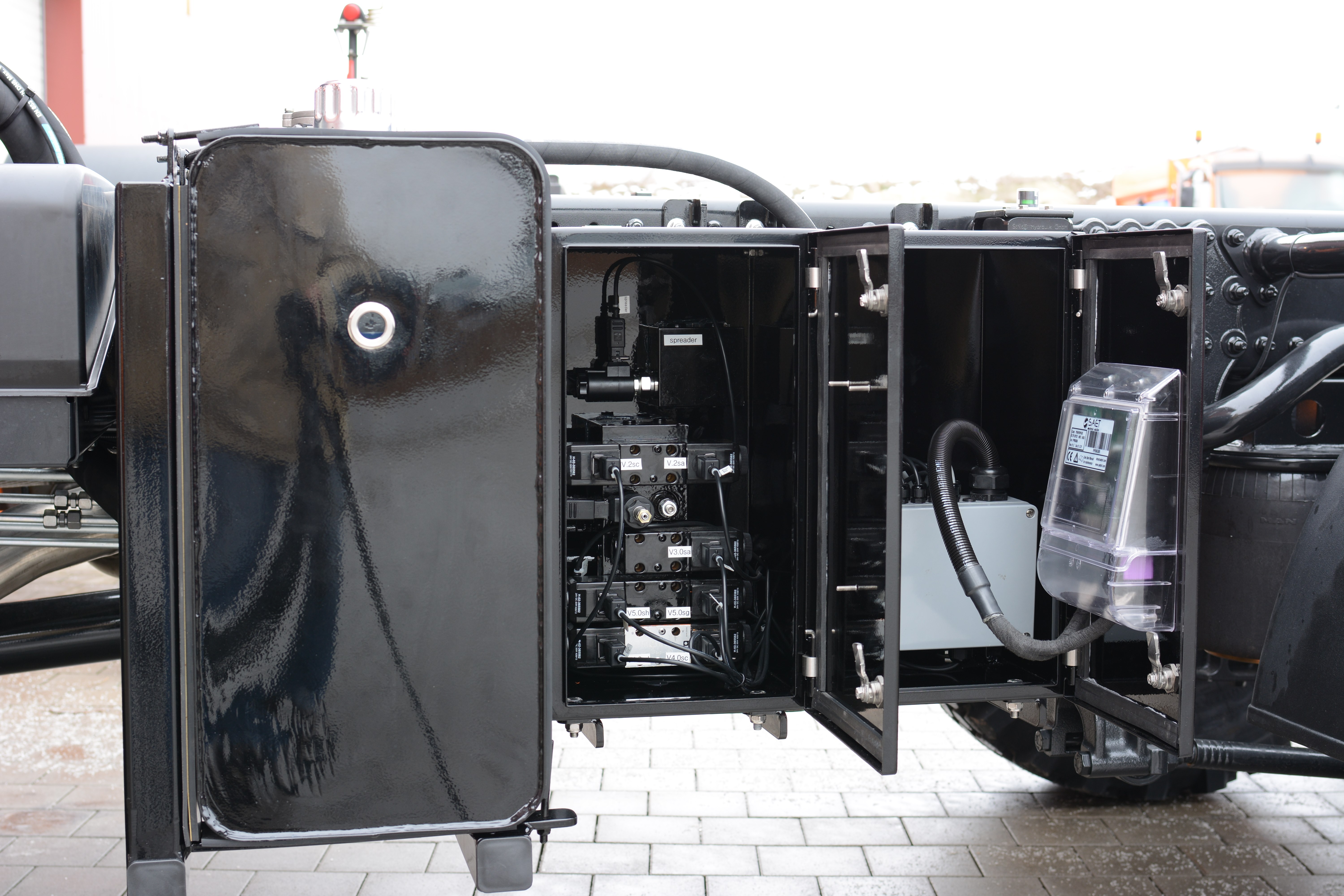

Equipment cabinet

(Ecomatic series) High-quality stainless steel equipment cabinet for the electronics and the hydraulic valves. For Econamic a combination equipment cabinet with an integral hydraulic tank is available on request.

Get to know more

Technical Overview

The table shows an overview of the performance capability of our hydraulic systems, and shows you which system will be best suited to your specific application.

Configuration examples

The graphic shows an overview of some configuration examples in combination with the hydraulic system Econamic or Ecomatic.

Further additional equipment
  • Stainless steel pipework including anti-corrosion protection
  • Wax preservation of corrosionendangered components
  • Front additional lighting ( winter operation )
  • Rotary beacon lights and flashing light systems
  • 3-pin socket for front plough lighting
  • Shovel and broom holder ( double shank holder )
  • HGV frame cover ( aluminium ) between the driver’s cab and tipper
  • Trailer socket
  • Storage box ( toolbox ) small Stainless steel ( L600 x H400 x D500 )
  • Storage box ( toolbox ) large Aluminium ( L2150 x H750 x D600 )
  • Extendable access ladder
  • Fire extinguisher ABC 6 kg
  • 360° HGV all-round view camera system
