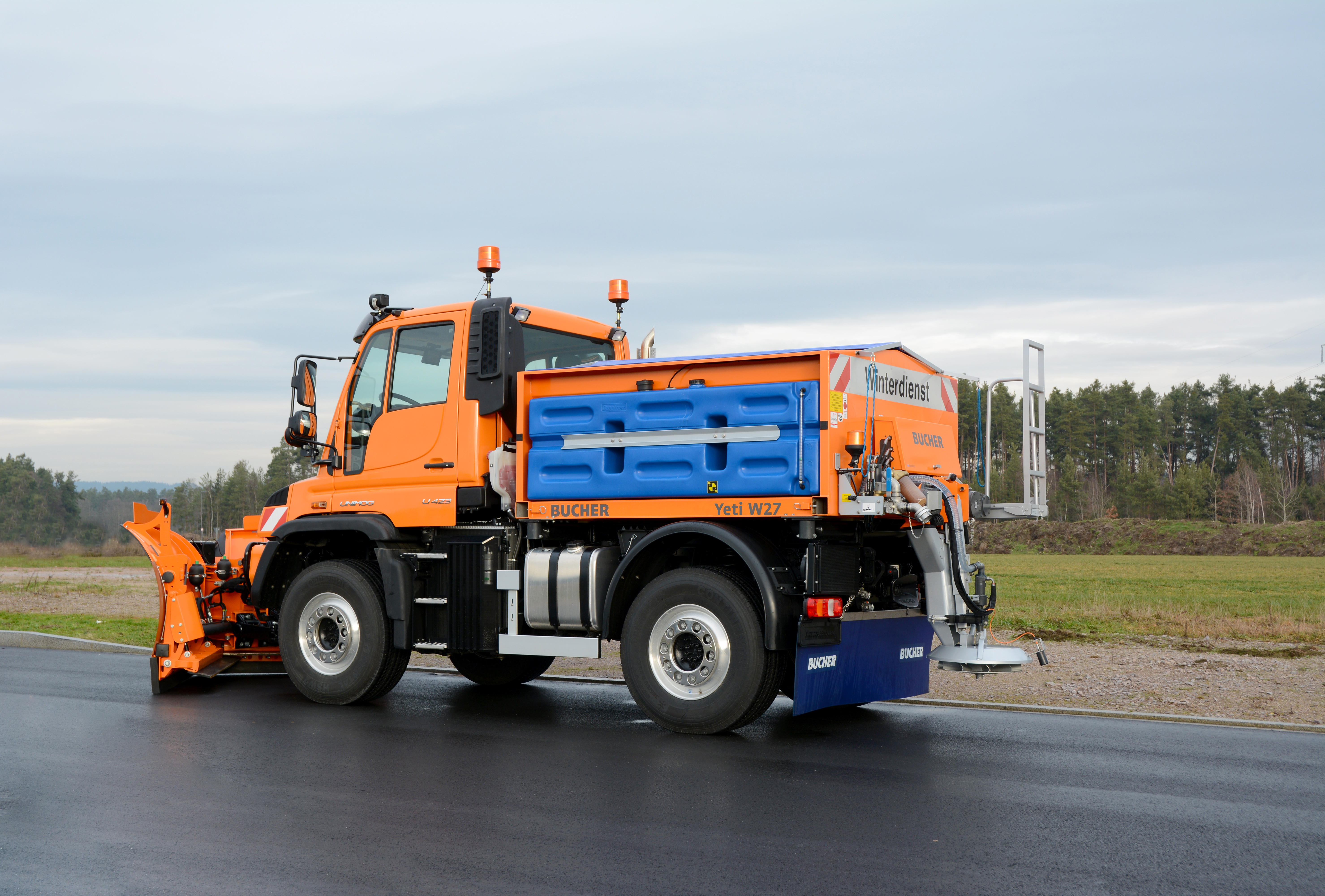

Yeti
high quality spreaders for Unimog and mid-sized trucks

Available in container size from 1.4m³ up to 4.4m³.

The spreaders of the Yeti series have an innovative container design and are available in various hopper sizes. This makes them ideal for mounting on a wide variety of municipal carrier vehicles such as Unimog and trucks. The vehicle-device combination is ideal for professional municipal tasks in urban areas thanks to the optimised weight distribution. The Yeti spreaders are available with hopper sizes from 1.4m³ to 4.4m³.

The outstanding double-auger system enables the lowest hopper construction possible. This special construction with two parallel augers offers the user essential benefits. The low sidewall height ensures that the driver has perfect, all round visibility. The low centre of gravity ensures safe driving, even in extreme situations.

Get to know the Yeti spreader

Safety

Innovative system

Large choice of hopper sizes
Customised construction — ideal weight distribution

Double auger system
Low hopper proﬁle — ideal all-round visibility, even when reversing

Low hopper centre of gravity
Very safe driving characteristics

Technology

State-of-the-art liquid salt technology

State-of-the-art liquid salt technology
High dosing precision and optimised distribution

Norm-compliant spreading precision test
Saving de-icing material and improved cost-effectiveness.

Performance

High quality and long lifetime

Powder-coated finish and numerous stainless steel components
Long equipment life-cycle — lower maintenance costs

Key specifications

Large choice of hopper sizes
State-of-the-art liquid salt technology
Low hopper centre of gravity
Very short bearing-out of the of spreader unit
Eco hydraulic block
Double auger system
Powder-coated finish and numerous stainless steel components

Key features

Work light

Demounting system

High number of stainless steel parts

Equipment box

Skid unit

Spreader distributor

Run dry protection

Sensor technology

Safety cover

Spreader unit

Liquid salt tank

Folding roof

Winter service warning signage

Ladder

Control unit

Hopper version

Spread pattern programmer

Spread control

LED work light

The LED work light is mounted on the spreading group and provides bright white illumination in the work area. Its housing is dust- and water-resistant

Mechanical demounting system (3.5t) with hand crank

(optional) Standard version with demounting system (500kg) for emptying gritting machines. Hydraulic demounting system and easy roll-off system (AbRo) available on request.

High number of stainless steel parts

The gritting machine has a special paintwork and the skid plate, spreader disc, feet sockets and all fasteners are made from stainless steel. The spreader is also available as a full stainless steel version (optional).

Equipment box

The equipment box offers optimum protection for the hydraulic block, the junction box and the black box. The box is made of steel and features a damp-proof seal.

Skid unit

The skid unit directs the salt to the spreading disc and is made entirely of stainless steel. It features an adjustable height and is damp-proof

Spreader distributor

The spreader distributes salt on the road and consists of a stainless steel spreading disc, a special plastic cone, and a plastic cover.

Run-dry protection

The run-dry protection is an optional feature of the liquid salt equipment. It immediately shuts off the pump when the tank is empty, preventing any damage.

Sensor technology

Only available together with the Ecosat control panel. This compares the set-point and actual values of the spreader disc, the auger and the liquid salt pump. The sensors are sealed to IP 67 protection rating.

Equipment safety cover

The equipment safety cover is mounted inside the hopper and features a lightweight construction made from highly durable GFK material.

Swing-up spreader unit

The spreader unit can swing up for trailer operation when detached, with easy movement assisted by a gas spring.

Optional liquid salt tank

The liquid salt tank is mounted on the side of the spreader and holds the liquid salt. The tanks are made from highly durable polyethylene and include a filler and a connection for a level sensor.

Optional folding roof

The folding roof protects the container contents from rain and snow. It consists of a stainless steel frame and high-strength PVC cover.

Optional warning signage

The winter service warning signage is made of retroreflective material for enhanced visibility on the rear and sides.

Optional ladder

The ladder has a full stainless steel construction and is available in various sizes.

Optional control unit Ecosat

Latest generation microprocessor control systems for all kind of spreaders, with maximum flexibility in programming and visualizing the different spreading parameters: width, asymmetry and dosage depending on the vehicle speed. Six different tools in an all-in-one control box.

Optional twin chamber version

The Yeti range can be supplied as a twin chamber version (optional). It is then possible to fill the hopper with two different spreading materials. Equipment supplied: Stainless steel partition, 3-way hydraulic block, speed monitoring of both augers.

Optional electronic spread pattern programmer

ESBV - Electronic spread pattern programmer

A powerful servomotor and a potentiometer enable the symmetric and asymmetric setting of the spreading pattern with using the control panel. The servomotor is waterproof to IP 67 protection rating.

Optional electronic spread control

The spread control is mounted on the disc protection. Contactless, infrared technology is used to monitor spreading. The housing is 100% waterproof to IP 67 protection rating.

Get to know more

Control unit Ecosat

Latest-generation microprocessor control systems for all types of spreaders, offering maximum flexibility in programming and visualizing spreading parameters such as width, asymmetry, and dosage based on vehicle speed. Six different functions are integrated into a single all-in-one control box.

Ecosat has an integrated GSM/GPRS module (option) which enables operational data transmission. In case of bad coverage (e.g. tunnels) the data is logged and will be transmitted as soon as the connection is back.

Ecosat integrates (option) a multi-constellation GNSS receiver which supports GPS or GLONASS improving the localization performance in terms of accuracy, continuity, availability, and reliability.

The Ecosat stores daily operational reports and global counters which can be downloaded or printed via serial connection.

A serial connection between the infrared sensor and the Ecosat allows automatic changing of the spreading dosage based on the road temperature.

On spreaders with electrical control of asymmetry, this function provides full control of the direction of spreading. The screen display varies according to the type of asymmetry: with or without feedback. 5 pre-set positions can be selected.

In this section of the working area, it is possible to monitor the level material in the tanks, the solid quantity in the hopper and also the fuel level (only for equipment with auxiliary engine).

The vehicle speed can be simulated from 5 to 90Km/h in steps of 5. This feature is useful when there is no tachometer connection, when the connection is damaged or when the spreader has to work while the vehicle is not moving.

Alternative control unit EcoTron / EcoTron Plus

The EcoTron / EcoTron Plus control panel unit is characterised by its compact dimensions and high-resolution graphics display. The EcoTron / EcoTron Plus performs sensor-based and monitoring of distance-dependent screw conveyor speeds and pump speeds, and also saves all relevant working data. A serial USB interface port is available for easy exporting of data.

Compact dimensions: Width 175mm, Height 115mm, Depth 65mm.

Two rotary knobs with precise click-in positions.

Large colour display 95mm x 55mm, dimmable.

Enlarged display area if the quantity to be spread or the width of spread changes.

Simple and secure adjustment of the most important spreading parameters: Metering width and asymmetry.

Backlight function keys for secure operation of the main functions even under bad lighting conditions.

User-friendly control interface which presents all the important information in a clearly structured format - optimum design based on the latest best practice.

Continuous recording all working data together with the overall information can be exported to an external storage medium (UBS stick) via the serial interface port.
